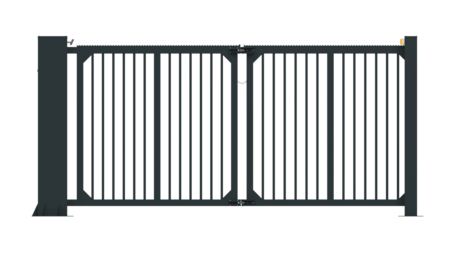

LBAi W-Gate Simple
High-speed single gate with artificial intelligence
High-speed gate with artificial intelligence.
The LBAi W-Gate ensures security for sites with no user risk.
It is totally unique due to its exclusive design, robustness and very low acquisition cost.
Standard specifications
Technical specifications
Standard characteristics:
- Speed: High-speed opening
- Continuous and intensive operation: 5,000 cycles/day
- Clearance width: 3 to 5 m
- Geared motor: Drive system and electronics integrated into the post
- Opening angle: 90° (option: 115°)
- Post: Technical post made of cataphoresis treated steel + paint
- Serrations: defensive anti-climbing serrations
- Leaves: (frames and bars) in painted aluminium, polyester paint
- ONE-C control board including: Power supply, PLC, frequency converter, SD card, RJ45 (Modbus) and torque limiter
- LBAi Detect intelligent security system: image analysis using artificial intelligence (optional)
- Light signals: Flashing lights & area lighting
Optional features:
Customisation
- Choice of RAL colours
- Customisable leaves
- LBAi Detect: Customisable detection area depending on the site configuration and ensuring complete user safety
- Stylish aluminium sheet with LBA Design pattern
- Single gate (1x2 leaves)
Audible & visual signals
- LED strips
Security
- Infrared barrier
- 2 infrared barrier support posts
- 4 safety edges for mounting on the leaves
- Defensive anti-climbing serration
- LBA i Detect camera (up to 2 detection areas)
- Magnetic lock
- Power supply : 230 V
- Power consumption : 100 W three-phase motor in motion
- Gearmotor : Motor 0.09 kW brake
- Emergency operation : Brake release in posts
- Foundation dimensions (LxWxH) : 600 x 600 x 800 mm
- Passage width : 3 to 5 metres
- Operating temperature : '-30° to +55° C
