Automatic retractable bollards

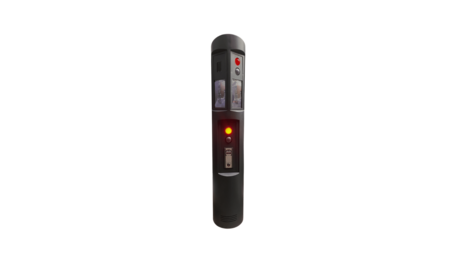

TOTEM TSC-L
Stylish technical totem for control logic and access control
Standard characteristics:
- Elliptical totem:
- Totem made of 2 mm thick cataphoresis treated steel with RAL 7016 epoxy powder coating
- Elliptical shape with a length of 448 mm and a width of 331 mm
- Height 2,500 mm
- Hinged door
- Watertight seal around the edge of the door
- Hinge-mounted control board
- 2 sides to be fitted with lights and access control devices with the following dimensions: height 695 mm x width 264 mm, facing both directions of traffic
- 1 access control side to be fitted with access control devices with the following dimensions: height 695 mm x width 244 mm, parallel to the direction of traffic
- Sloping top
- Natural ventilation
- Locking:
- Locking with 2 compression locks
Optional features:
- Plate fitted with a pair of Ø 100 LED lights
- Plate fitted with a pair of Ø 200 LED lights
- Integrated triangle emergency services release system
- Preconfigured for the integration of access controls
- Preconfigured for LPR integration
- Thermostatically controlled heater + hygrostat
- Seafront paint treatment
- PVC sealing template + anchor brackets
- Screen and camera unit for a view of the bollard
- Finishes : RAL 7016 steel colour
- Passage height : 2,500 mm
- Cylinder dimension above ground (H-dima) : Elliptical 448 x 331 mm
